Product Description

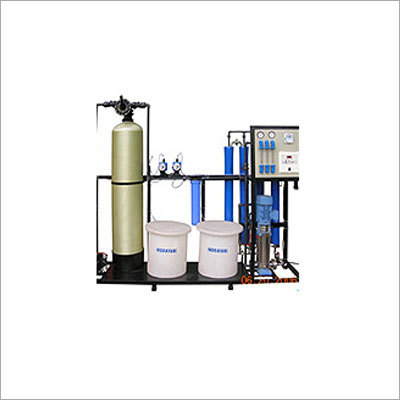

Reverse Osmosis (RO) & Ultra Filtration(UF)
We offer Reverse Osmosis (RO) plants worldwide in standard capacities, which range from 400 lph to 3000 lph. However higher capacities such as up to 50000 lph and more are also designed as per requirements.
We also offer:
- Cabinet type Reverse Osmosis (RO) & Ultra Filtration (UF) plant.
- Containerised Reverse Osmosis (RO) & Ultra Filtration (UF) plant.
Customized Reverse Osmosis (RO) Plants
At Chemtronics, we are engaged in design, production, supply, installation and commissioning of reverse osmosis plants, water reverse osmosis plants, water purifying plants, mineral water plants and ultra filtration plants. We offer our range of reverse osmosis and ultra filtration plants in various specifications to fulfill specific customer requirements of our clients.
Reverse Osmosis has gained wide acceptance and popularity due to its simple operation and the ability to withstand variations in feed water quality. We make water reverse osmosis plants as per the specific needs of customers by taking into consideration the feed water source, type of manpower available to operate and maintain the plant, end use of treated water etc.
Ultra Filtration is also finding increasing applications ranging from RO pre-treatment to waste management, paints recovery, milk and whey filtration, pharmaceuticals and much more.
Features of Reverse Osmosis (RO)
Simple to operate, Easy to maintain, Automatic operation, Compact, Adequate safety interlocks, Reject recycle loops for higher recovery.
Specifications for standard products of Reverse Osmosis(RO).
| Equipment | Remarks | 400-500 lph | 600-750 lph | 800-1000 lph | 1200-1500 lph | 1600-2000 lph | 2400-3000 lph |
| Raw water pump | CI monoblock, 1-ph, 230 V | 01 no | 01 no | 01 no | 01 no | 01 no | 01 no |
| Pressure Sand Filter | FRP vessel, sand and MPV | 12"x48" | 13"x54" | 13"x54" | 14"x65" | 16"x65" | 18"x65" |
| Antiscalant Dosing. | 3 lph pump. 60 lit tank | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
| Micron Filter | PP housing, spun cartridge | 01 set. 20" | 01 set. 20" | 01 set. 20" | 01 set. 10" BB | 01 set. 20" BB | 01 set. 20" BB |
| High Pressure Pump | SS Vertical Multistage | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
| Membrane | DOW-BW30-4040 | 02 no | 3 No | 4 No | 6 No. | 8 No. | 12 No. |
| Pressure Tube | SS / FRP 250 - 300 psi | 02 no | SS / FRP | SS / FRP | SS / FRP | SS / FRP | SS / FRP |
| Flow meters | Polycarbonate rotameters | 03 no. | 03 no. | 03 no. | 03 no. | 03 no. | 03 no. |
| Pr. gauge | SS, back entry | 02 no | 02 no | 02 no | 02 no | 02 no | 02 no |
| Controller | Dedicated logic controller | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
| LPS / LS | Low pr and level switch | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
| MS Skid | Powder coated | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
| Flushing S.V | 230 VAC NC | 01 no | 1 no. | 1 no. | 1 no. | 1 no. | 1 no. |
| Piping | PVC and SS | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set |
Applications of Reverse Osmosis (RO)
Drinking, boiler feed, process, chemicals, pharmaceuticals, beverages, breweries, semi conductors washing, car washing, laundry, hotels, swimming pools, cooking, waste water recycle, textiles, laboratories, etc.
Cabinet Type Reverse Osmosis (RO) and Ultra Filtration (UF) Plants
We manufacture and design small Reverse Osmosis and Ultra Filtration Plants in enclosed cabinets. Enclosure provides protection from weather and also from unauthorized personnel. Outer cabinet ensures better aesthetics and only pressure, flow, conductivity readings are available on the front panel. Containerized construction makes the plant portable and hence can be easily transported to different locations such as army camps, natural calamity affected areas, and more.
|
Cabinet Type RO and UF Plants
Small RO plants are enclosed in MS powder coated cabinets. Cabinets have a Lock and key that protects it from unauthorized access. Fully automatic, these ultra filtration plants are excellent in aesthetics. Higher recovery (optional) can be achieved through reject recycle. Compact in structure, these are provided with adequate safety interlocks and ensure easy operation.
| Equipment | Remarks | 75-100lph | 75-100lph | 150-200lph | 150-200lph | 400-500 lph | 600-750 lph | | Raw water pump | CI monoblock, 1-ph,
230 V | 01 no | 01 no | 01 no | 01 no | 01 no | 01 no | | Pressure Sand Filter | FRP vessel, sand
and MPV | 8"x44" | 8"x44" | 10"x54" | 10"x54" | 12"x48" | 12"x48" | | Antiscalant Dosing | 3 lph pump.
60 lit tank | 0 | 01 set | 0 | 01 set | 01 set | 01 set | | Micron Filter | PP housing,
spun
cartridge | 01 set. 10" | 01 set. 10" | 01 set. 10" | 01 set. 10" | 01 set. 20" | 01 set. 20" | | High Pressure Pump | SS Vertical
Multistage | Rotary Vane Type 01 no. | 01 no | Rotary Vane Type 01 no. | 01 no | 01 no | 01 no | | Membrane | DOW-BW30
-4040 | 1 no.(2540) | 1 no.(2540) | 01 no | 01 no | 02 no | 03 no | | Pressure Tube | SS / FRP
250 - 300 psi | 01 no | 01 no | 01 no | 01 no | 2 no | 3 no | | Flow meters | Polycarbonate
rotameters | 2 no. | 3 no | 2 no. | 3 no | 3 no | 3 no | | Pr. gauge | SS, back
entry | 2 no. | 2 no. | 2 no. | 2 no. | 2 no. | 2 no. | | Controller | Dedicated logic
controller | 01 no | 01 no | 01 no | 01 no | 01 no | 01 no | | LPS / LS | Low pr
and
level switch | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set | | MS Cabinet | Powder
coated | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set | | Flushing S.V | 230
VAC NC | 01 no | 01 no | 01 no | 01 no | 01 no | 01 no | | Piping | PVC
and SS | 01 set | 01 set | 01 set | 01 set | 01 set | 01 set | |
Applications of Cabinet Reverse Osmosis (RO) & Ultra Filtration (UF):
The cabinet type Reverse Osmosis and Ultra Filtration Plants offered by us have found several applications in centralized drinking water systems in factories and offices. These plants can also be used as replacement of bottled water, chemicals, battery water, laundry and for cooking & domestic applications.
Containerized RO and UF Plants
We offer small and medium size Containerized Reverse Osmosis and Ultra Filtration Plants enclosed in transportable containers. Container can be kept in 'Lock and Key' to avoid tampering by unauthorized persons. All components are protected from weather. These plants can be transported from one place to another, in case permanent establishment is not possible.
Features of Containerized Reverse Osmosis & Ultra Filtration:
Compact in structure, these plants are portable in size, superior in aesthetics and weather protected.
Applications of Containerized Reversed Osmosis & Ultra Filtration:
The quality containerized Reverse Osmosis and Ultra Filtration plants offered by us are used in various applications such as defense establishments, calamity affected areas, rural areas for community drinking water supply and construction sites.
